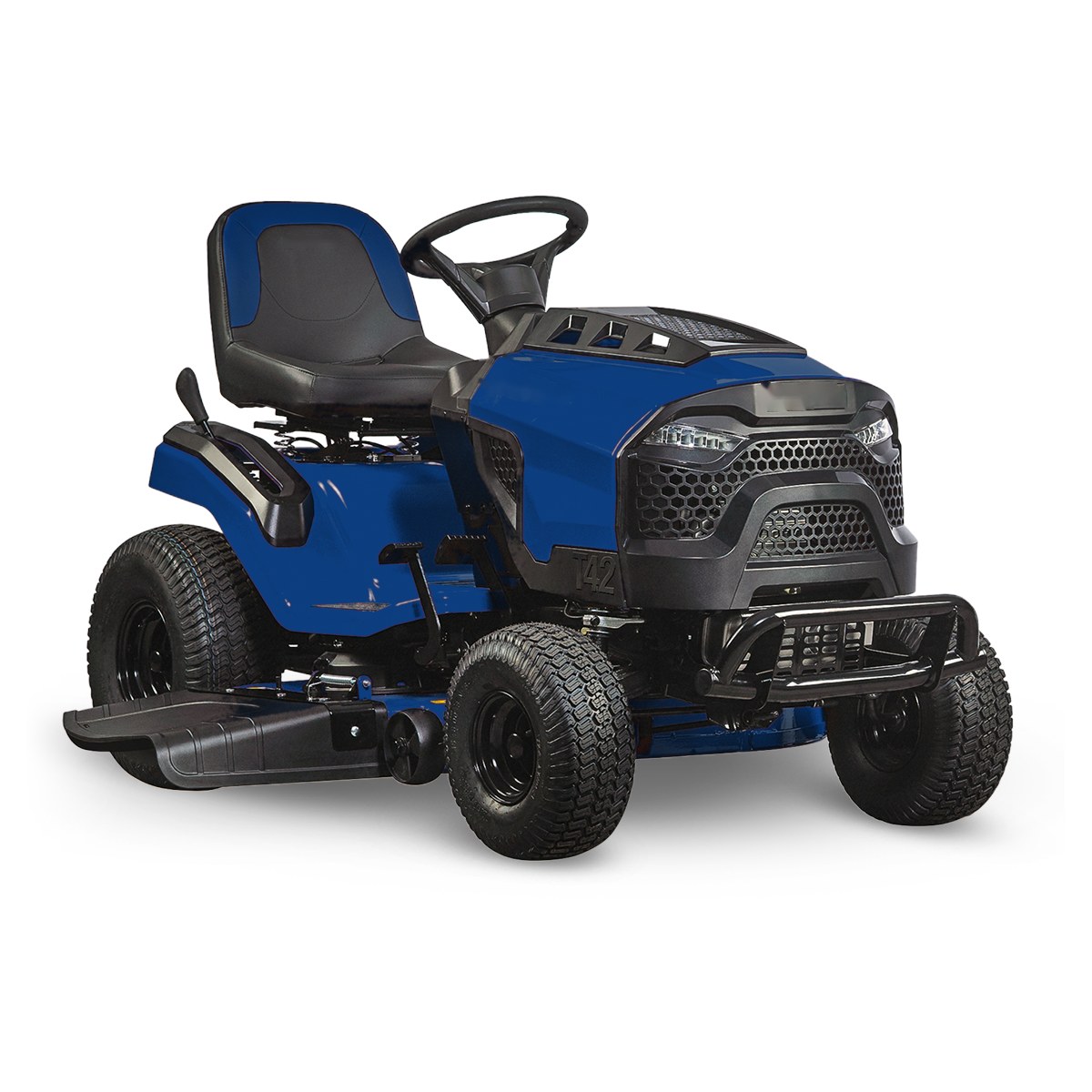

Masport MPT42 Lawn Tractor
The Masport MPT42 Lawn Tractor takes the Masport name into the riding category: a 42-inch fabricated-deck tractor for residential properties of one to three acres, sold, set up and serviced by authorised Masport dealers.
A fully welded steel frame and a cast-iron front axle carry an 11-gauge fabricated steel deck that holds its shape on rough ground, and twin mulching blades recut clippings into a fine mulch instead of merely discharging them. Power comes from a 19 HP single-cylinder engine with full-pressure lubrication and a spin-on oil filter.
A twin-pedal hydrostatic transaxle gives smooth, shift-free control up to 5.5 mph forward, and an electric PTO engages the blades from the dash. The operator gets a 15-inch high-back seat, a soft-touch steering wheel, anti-vibration mounting, toolless spindle covers for quick deck service and on-board storage with cup holders.
Key features
- 11-gauge fabricated steel deck, 42 in. cut, 13 cutting heights from 1.5 in. to 4.5 in.
- 19 HP single-cylinder engine with full-pressure lubrication and spin-on oil filter
- Hydrostatic twin-pedal drive - no shifting, 0 - 5.5 mph forward
- Electric PTO - engage the blades from the dash
- Fully welded steel frame and cast-iron front axle
- 15 in. high-back seat, soft-touch steering wheel, anti-vibration mounting
- Toolless spindle covers for fast deck maintenance
- 400 lb towing capacity for carts and attachments
At a glance
| Product type | Riding Lawn Tractor |
| Model number | MPT42 |
| Ideal acreage | 1 - 3 acres |
Engine & power
| Engine make | Briggs & Stratton |
| Engine model | EX1900 (EX Series) |
| Gross horsepower | 19.0 hp |
| Displacement | 540 cc |
| Cylinders | Single |
| Start type | Electric key start |
| Lubrication | Full Pressure Lube System with spin-on oil filter |
| Oil capacity | 48 oz |
| Air cleaner | Dual Element Cartridge with Advanced Debris Management |
| Anti-vibration | Anti-vibration mounting |
Deck & cutting
| Cutting width | 42 in (107 cm) |
| Deck width | 43.25 in |
| Deck type | Fabricated |
| Deck steel gauge | 11 ga. |
| Blade count | 2 |
| Blade type | Mulching, 42 in. deck (H2135200030A) |
| Blade engagement | Warner Electric PTO |
| Discharge | Rubber chute (side) |
| Airflow system | Optimised deck airflow for mulching |
| Cutting height range | 1.5 in - 4.5 in |
| Cutting height positions | 13 |
Drive & transmission
| Transmission type | Hydrostat (twin pedal) |
| Transmission brand | Hydro-Gear T2 |
| Forward speed | 0 - 5.5 mph |
| Reverse speed | 0 - 3 mph |
Chassis, comfort & dimensions
| Frame | Fully welded steel |
| Front axle | Cast iron |
| Turning radius | 16 in |
| Steering wheel | Ergonomic with soft-touch grip |
| Seat | 15 in hi-back, stitched |
| Front tires | 15 x 6 in |
| Rear tires | 20 x 8 in |
| Operating weight | 450 lb |
| Shipping weight | 540 lb (crated) |
| Fuel tank capacity | 2.5 gal |
| Towing capacity | 400 lb |
Warranty & service
| Mower warranty | 3-year limited warranty, unless otherwise specified in the related warranty statement |
| Engine warranty | As specified in the related warranty statement |
| Blade sharpening interval | Every 25 mowing hours |
Parts & maintenance
Genuine Masport service parts for the MPT42, carried in the Masport Parts section of this portal:
- Blade for 42in. Riding Mowers — part number H2135200030A (two per deck)
- RH Idler Pulley Kit for MPT42 Lawn Tractor — part number 2130200591
- Deck Belt for MPT42 Lawn Tractor — part number 2109600049A
Sharpen or replace the blades every 25 mowing hours, and check the deck belt and idler pulley for wear at every seasonal service.
Warranty
The MPT42 is a ride (tractors and zero-turn mowers) and carries the Masport 3-year limited warranty, unless otherwise specified in the related warranty statement. Accessories carry a 1-year limited warranty; replacement parts carry a 60-day limited warranty from date of purchase with valid proof of purchase. Dealers can add the 3-Year Extended Warranty ($129.95 retail) at the sale. Register the serial number at handover through Warranty & serials, and raise a claim through Warranty claims - both are in the customer center of this portal.
